1.0 Megapixel 720P/960p IR AHD Mini Dome PTZ Camera

FOB Reference Price:Get Latest Price
$1.00 - $120.00 / Pieces | 1 Piece/Pieces ptz dome camera no MOQ (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
HCVISION/OEM
Model Number:
HCV-AH4B-130M
Type:
Analog Camera
Style:
Dome Camera
Sensor:
CMOS
Special Features:
indoor ptz
Resolution:
960p ptz dome camera
Heating:
Optional
Waterproof:
indoor
IR Distance:
50m
Zoom:
10X
Warranty:
2 years
Certificate:
CE FCC RoHs
Feature:
360 degree high speed dome
ptz bracket:
ceiling mount and Wall mout optional
PoE:
optional
Technology:
Pan / Tilt / Zoom
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month ptz dome camera in store
Packaging & Delivery
Packaging Details
ptz dome camera package: V.W 18KG ;4pcs/cnt
Port
Shenzhen ports
Lead Time :
5-7 working days
Product Description

1.0 Megapixel 720P/960p IR AHD Mini Dome PTZ Camera Feature:
1.Rotate 360°in horizontal direction,driven by exact engine,operate stably with Precise position-setting.
2.The rotation speed can be adjustable according to the zoom rate of camera lens, auto-focus, auto white balance.
3.Built-in OSD. Several control protocols are compatible and Baud rate is adjustable.
4.Vertical 90°continuous monitoring after auto reversing 180°.

Model No .
HCV-AHDM4A-130M
Image sensor
1/3″ CMOS
Signal model
PAL/NTSC
Horizontal resolution
960P
Effective pixel
1280(Horizontal)x 960(Vertical)
Minimum illumination
Color to B/W, Color: 0.01Lux, B/W: 0.001Lux
S/N radio
>60dB(Enhanced)
Backlight compensation
On/Off
White balance
Auto
Electronic shutter
1/50~1/12000 seconds
Focus length
3.8~38mm
Optical focus
10X
Focus
Auto/manual, take high-performance DSP to realize complete digit and ultra-high speed focus function
Patrol track
4groups, each can record 200 actions
Cruise track
Total 30 presets can join cruise, can setting the presets’ residence time
Other scan
Support Horizontal scan, deuce area scan, scan random
Rotation range
Horizontal 360°unlimted rotation, Vertical 90°,auto reversal
Rotation speed
Horizontal & Vertical Min 0.01°,Max 200°/S
Communications
RS-485, PELCO D, PELCO P
OSD
Yes
Temperature control
built-in
IR distance
35m
Power supply
DC12V/2A
Material
Aluminum shell
Work environment
-20℃~+50℃(select temperature control accessories), <95%RH

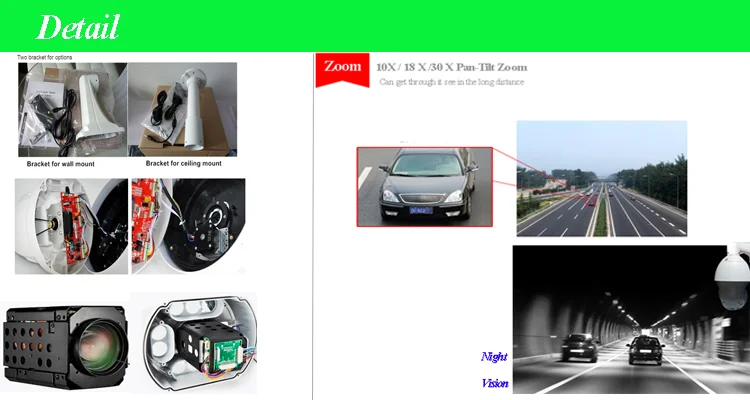

Detailed Images

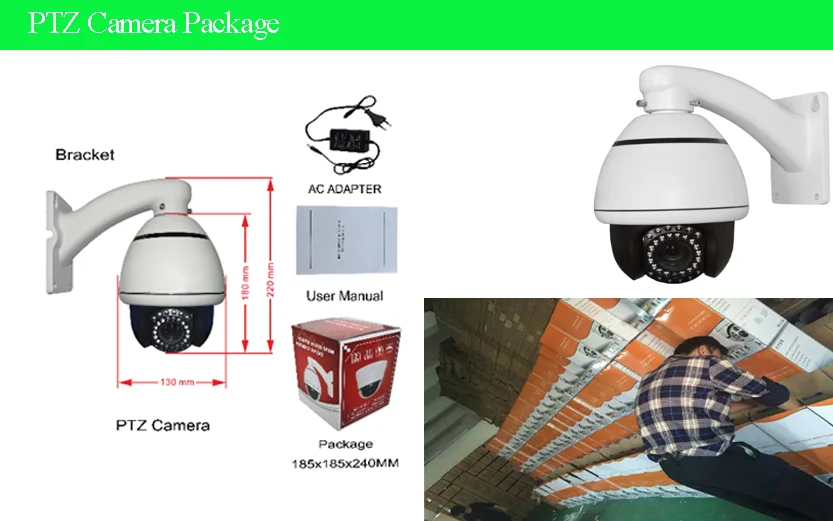

Packing & Delivery
Our Services:
OEM/ODM service
Yes
Warranty
2 years
Delivery time
Hot model sample in store; Stardand camera 5-7 working days
Payment
T/T;Paypal;WU
Shipping
Express,air cargo,sea cargo
