Desktop switch poe 8 port Ethernet networking Switch

FOB Reference Price:Get Latest Price
$1.00 - $250.00 / Pieces | 1 Piece/Pieces switch poe no MOQ (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
HCV-CA08-P
Type:
cctv accessories
Application:
switch poe 8 port
Power supply:
DC12V/1A
Support:
Support IEEE802.3af standard
P2P:
Yes
Network Port:
8 10/100Mbps PoE RJ45 port
Transfer Rate:
100Mbps full Duplex
POE pin:
1/2(+),3/6(-);or customized 4/5(+),7/8(-)
Certificate:
CE ROHS FCC
Network interface:
RJ-45 port
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month switch poe in store
Packaging & Delivery
Packaging Details
switch poe package: 18pcs/CTN ;G.W:29kg/CNT
Port
Shenzhen Port
Lead Time :
5-7 working days
Product Description

Desktop switch poe 8 port Ethernet networking Switch Feature:

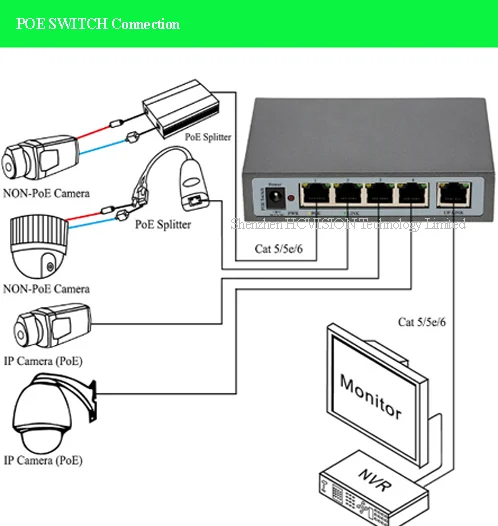

1.Support power over ethernet cable device for example wireless AP and IP camera
2.Support IEEE802.3af  standard.
3.Data and power transmission distance 100m, it can be flexible installation for wireless AP and surveillance project.
4. Support upward port auto MDI/MDIX.
5. Adopted storage forward switch system.
6. Intelligentize power and minimum consumption,guarantee PD requirement.
7. With power supply circuit protection function and protection back-end device safety.
8. Automatically provide the adaptive device.
9. Adopted single fan radiating increase the device performance.
10. PSE modular design.
11. Support loop circuit detection.
12. Support saving power function when port unconnection.

Model No.
HCV-CA08-P
Network Port
8 10/100Mbps  PoE  RJ45 port(port 1~port 8)
1 10/100Mbps  Non-POE  RJ45 port(port 9)
Transfer Rate
100Mbps full Duplex,10 or 100Mbps Half Duplex
Network interface:10BASE-T or 100BASE-TX Ethernet  RJ-45 port
Performance
bandwidth:1.8Gbps (no block)
network delay(100 to 100M bps):maximum 20 μs(using 64 byte  packet)
MAC  address capacity:1K
Frames filter and transmission rate:
10M port  maximum 14,800pps
100M port maximum 148,800pps
Network protocol and standard
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
POE pin
1/2(+),3/6(-);or customized 4/5(+),7/8(-);
LEDs indicator
Power
LINK/ACT 、PoE
Power
Total power 96W ( port1~port8), single port max 15.4W
Input power:96W;52V @ 1.85A DC output power;
(Each country use customized power plug)
Dimensions
Size(LxWxH):184mm x  94mm x 27mm
Weight:0.9 kg
Environment
Operating Temperature:0°~40°C(32°~113°F)
Storage Temperature:-20℃~90℃(-4°~194°F)
Working Humidity:10%~90% (Non-condensing)
Storage Temperature:5%~90% (Non-condensing)
EMC
CE Class B
FCC Part 15,Class B
VCCI Class B
C-Tick
Certifications
CE/RoHS/FCC

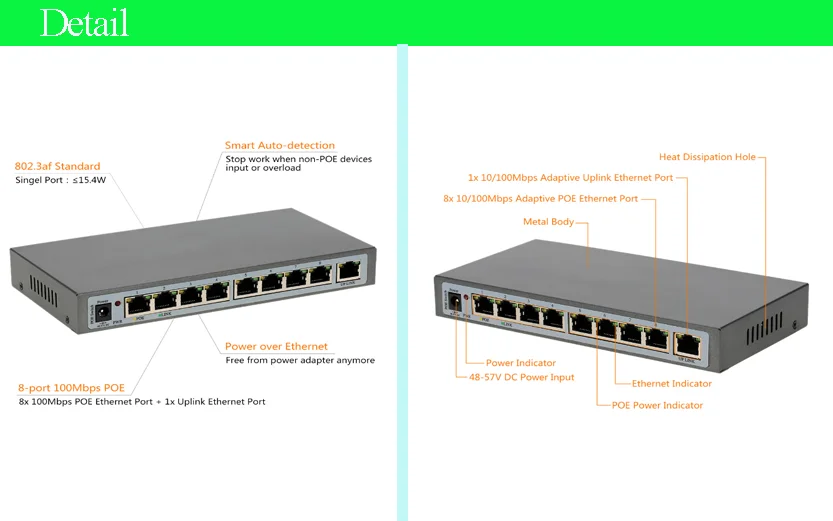

Detailed Images
About HCVISION
Our Services:
OEM/ODM service
Yes
Warranty
2 years
Delivery time
Hot model sample in store; Stardand camera 5-7 working days
Payment
T/T;Paypal;WU
Shipping
Express,air cargo,sea cargo
