3.5" 10X mini indoor security camera ir dome camera pan zoom tilt camera Sony Sensor analog mini ptz dome camera security system

FOB Reference Price:Get Latest Price
$1.00 - $80.00 / Pieces | 1 Piece/Pieces mini ptz dome camera no MOQ (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
HCVISION/OEM
Model Number:
HCV-AH4D-1200TVL
Type:
Analog Camera
Sensor:
CMOS
Special Features:
indoor ptz dome
Resolution:
SONY 1200TVL
Heating:
Optional
application:
indoor ptz
IR Distance:
50m
Zoom:
10X
Warranty:
2 years
Certificate:
CE FCC RoHs
Feature:
mini ptz dome camera
ptz bracket:
ceiling mount and Wall mout optional
ptz case:
3.5 inch
Technology:
Pan / Tilt / Zoom
Style:
Mini Camera
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month mini ptz dome camera in store
Packaging & Delivery
Packaging Details
mini ptz dome camera package: V.W 18KG ;4pcs/cnt
Port
Shenzhen ports
Lead Time :
5-7 working days
Product Description

3.5" 10X mini indoor security camera ir dome camera pan zoom tilt camera Sony Sensor analog mini ptz dome camera security system cameras Feature:
1. 10x HD color zoom module
2. The indoor monitoring system shares a series of excellence, such as full-angle, non-blind, aesthetic, delicate, compact, high performance and easy installation
3. Rotate 360degree in horizontal direction,driven by exact engine,operate stably with Precise position-setting
4. The rotation speed can be adjustable according to the zoom rate of camera lens, auto-focus, auto white balance
5. Built-in OSD. Several control protocols are compatible and Baud rate is adjustable
6. Vertical 90 degrees continuous monitoring after auto flip 180 degrees
7. IR Distance 50m
8. Waterproof Housing, Support Outdoor and Indoor Installation
9. Presets: 256
10. Patrol Track: 4groups, each can record 100 actions
11. Cruise Track: Total 30 presets can join cruise, can setting the presets' residence time
12. Other scan:Support Horizontal scan, deuce area scan, scan random
13. Rotation range: Horizontal 360 degrees unlimted rotation, Vertical 180 degrees, auto flip
14. Rotation speed: Horizontal & Vertical Min. 0.01 degree, Max. 30 degrees/s
15. Communications:RS485, Pelco-D, Pelco-P
16. Temperature Control: Built-in
17. Material: Aluminum alloy housing

Model No.
HCV-AH4D-1200TVL
Image sensor
1/2.8" Sony CMOS image sensor
Signal mode
PAL/NTSC
Horizontal resolution
1000TVL
Effective pixel
1280(H)x720(V)
Min. illumination
Color to B/W, Color: 0.01Lux, B/W: 0.001Lux, IR on 0lux
S/N radio
>60dB(Enhanced)
Backlight compensation
On/Off
White balance
Auto
Electronic shutter
PAL:1/50~1/10000 seconds NTSC:1/60~1/12000 seconds
Focus length
5~50mm
Optical zoom
10X
Focus
Auto/manual, take high-performance DSP to realize complete digit and ultra-high speed focus function
Presets
255
Patrol track
4 groups, each can record 200 actions
Cruise track
Total 30 presets can join cruise, can setting the presets' residence time
Other scan
Support Horizontal scan, deuce area scan, scan random
Rotation range
Horizontal 360° unlimted rotation, vertical 90°, auto flip
Rotation speed
Horizontal & Vertical Min. 0.01°, Max 30°/s
Communications
RS485, Pelco-D, Pelco-P
OSD
Yes
Temperature control
Built-in
IR distance
50m
Power supply
DC 12V/2A
Working environment
-20℃~+50℃(select temperature control accessories), <95%RH
Material
Aluminum alloy housing

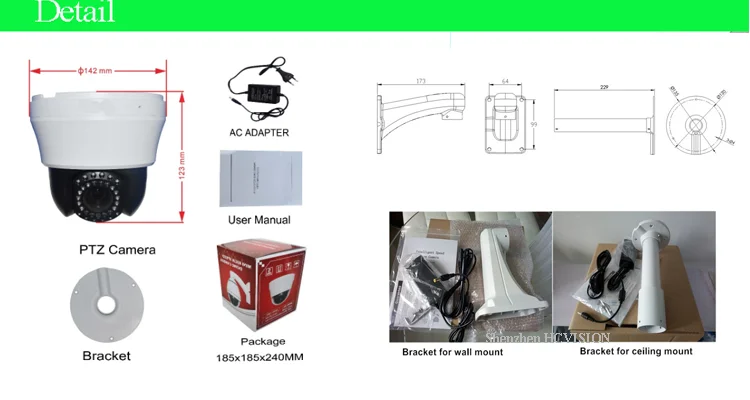

Detailed Images
