4 port poe switch for hikvision ip camera

FOB Reference Price:Get Latest Price
$1.00 - $30.00 / Pieces | 1 Piece/Pieces poe switch no MOQ (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
HCV-CA04-P
Type:
cctv accessories
Application:
poe switch
Power supply:
DC12V/1A
Power over Ethernet standard:
IEEE 802.3af Power over Ethernet standard
p2p:
Plug and Play
Ethernet:
10/100Mbps
Ports:
4x100M Auto-MDIX PoE / PoE+ RJ-45 ports
Power over Ethernet:
blue LED displayer
Certificate:
CE ROHS FCC
Offline search & add devices:
pin 3,6 for power- and pin 1,2 for power+
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month poe switch in store
Packaging & Delivery
Packaging Details
poe switch package: 18pcs/CTN ;G.W:29kg/CNT
Port
Shenzhen Port
Lead Time :
5-7 working days
Product Description

4 port poe switch for hikvision ip camera Feature:

1.IEEE 802.3af Power over Ethernet standard.
2.Supports 10/100Mbps fast Ethernet.
3.4 x 100Mbps Auto-MDIX PoE ports.
4. Provides up to 15.4 watts for PoE.
5. Automatically detects the PoE class level of a Powered Device.
6. 1Gbps  bandwidth.
7. Forwarding rate: 100 Mbps / 148,800 pps; 10 Mbps / 14,880 pps.
8. Status LEDs: System Power, PoE, 100 Mbps, and Link / Activity.
9. Full wire-speed non-blocking reception and transmission.
10. Store-and-forward switching method.
11. Back pressure Flow Control for Half-Duplex mode.
12. IEEE 802.3x Flow Control for Full-Duplex mode.
13. Plug and Play.

Model No.
 HCV-CA04-P
Standard
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3x Flow Control
Ports
4x100M  Auto-MDIX PoE / PoE+ RJ-45 ports
Data Transfer Rate
Ethernet: 10/100 Mbps (Half / Full Duplex)
Forwarding Rate
100 Mbps / 148,800 pps, 10 Mbps / 14,880 pps
Switch capacity
 1Gbps
Power
100-240 V, 50/60 Hz
LED indicator
Power, PoE, Link / Activity
Power Consumption
Min: 8 Watts (standby)
Max: 60 Watts
Temperature
Operating: 0° ~ 45°C (32° ~ 113°F)
Storage: -20° ~ 90°C (-4° ~ 194°F)
Humidity
Max 90% (non-condensing)
Dimensions
92 x 82 x 22 mm
Weight
0.7kg
Certifications
CE, FCC ROHS
Power over Ethernet
Up to 15.4 watts for PoE
PoE: pin 3,6 for power- and pin 1,2 for power+

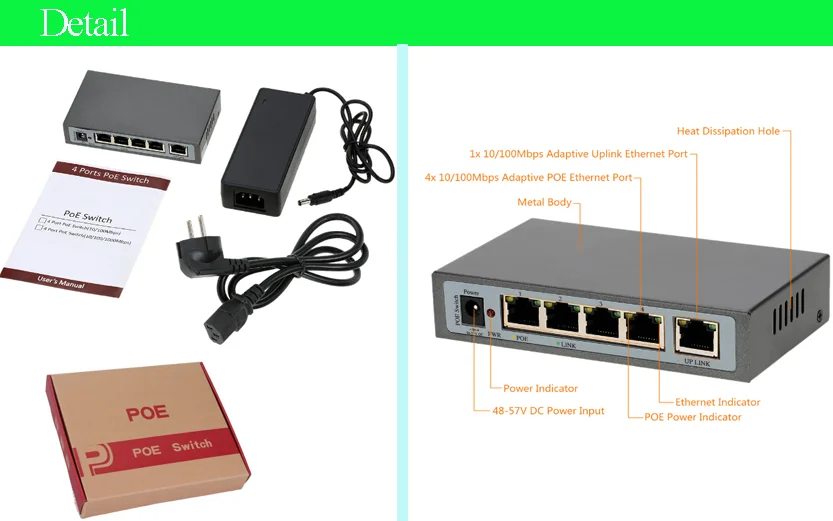

Detailed Images
About HCVISION
Our Services:
OEM/ODM service
Yes
Warranty
2 years
Delivery time
Hot model sample in store; Stardand camera 5-7 working days
Payment
T/T;Paypal;WU
Shipping
Express,air cargo,sea cargo
