5 in 1 4K IP CCTV Camera Tester With Hikvision Dahua Cameras

FOB Reference Price:Get Latest Price
$1.00 - $250.00 / Pieces | 1 Piece/Pieces 4K Camera no MOQ (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
HCV-CA001-4K
Type:
4K Camera Tester
Application:
hikvision IP camera Tester
Power supply:
DC 12V / 2A
LCD Screen:
7 inch
Onvif:
Yes
WIFI:
Built-in wireless WIFI, speed 150M
RS485:
interface
PoE:
PoE camera tester
Certificate:
CE ROHS FCC
Camera tester:
5 in 1 camera tester
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month 4K IP Camera in store
Packaging & Delivery
Packaging Details
hikvision IP camera package: 18pcs/CTN ;G.W:29kg/CNT
Port
Shenzhen Port
Lead Time :
5-7 working days

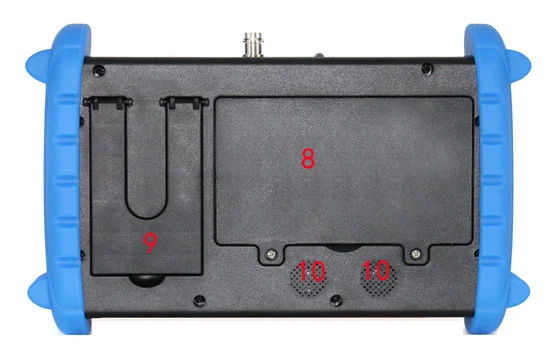

Detailed Images
Camera Tester

5 in 1 4K IP CCTV Camera Tester With Hikvision Dahua Cameras

Feature:

1.7 inches full view IPS HD screen resolution of 1280 × 800, PPI up to 216.
2..display back light brightness is adjustable up to 500cd, display contrast 800: 1
3.using G + G structure capacitive touch screen , hard wear-resistant , corrosion-resistant, high transmittance.
4.  NTSC / PAL analog CVBS video image display , zoom , video recording , photo.
5.  10 / 100M Ethernet interface , built-in 150M WIFI wireless capabilities
6.   support H264 / MPEG4 / MJPEG/H265 format network camera test , maximum resolution to 4K.
7.   high definition hardware decoder for displaying cameras high-definition images in real time smoothly.
8. support display ONVIF network camera image and modify parameters.
9.  support network cameras private protocols test of multiple manufacturers such as Hikvision, DAHUA , ACTI, NCR , can be customized to add.
10.  support PELCO-P, PELCO-D, SAMSUNG etc many kinds of PTZ control protocol.
11.  support high-definition video images in real time zoom , maximum zoom 5x.
12.Internal SDCARD 8G storage space , removable external MicroSD card.
13. Support the mouse, keyboard, U disk and mobile hard disk.
14. 7.4V 5000mAh high-capacity polymer lithium battery , once charge 5 hours, can use continuously for 12 hours.

Model No.
HCV-CA001
touch screen
7 inch G + G structure capacitance screen
LCD screen
7-inch resolution of 1280 × 800 IPS fully view
Ethernet port
10 / 100M adaptive
WIFI
Built-in wireless WIFI, speed 150M
IP Monitor Test
ONVIF camera images real-time play, support maximum 4K H265/H264 / MJPEG / MPEG4 format, support for modify IP and other parameters, support ONVIF PTZ control
CVBS analog monitor test
1 channel CVBS analog input , support PAL / NTSC standard adaptive
Video image enlarge
Real-time enlarge mobile HD video image , maximum to 5 times
Camera, video playback
Support video and photo All video image.
Audio Test
One audio input test , can be recorded or saved , one audio output for connecting headphones
PTZ control
Supports Pelco-D / P, Samsung, Panasonic and kinds of protocols
Color Bar Generator
You can send PAL / NTSC color graphics section
DC 12V power output
12V DC output , the maximum current 2A, temporary power supply for the camera
POE power output
48V POE standard output , to provide power for the POE cameras
RS485 serial tools
Send or Receive any data or hex data
PSE voltage test
Display POE power supply device voltage and circuit conditions
HDMI video output
Send high-definition monitor images to HDMI Monitor
DC 5V Output
Provides temporary power to the USB-powered camera or provide mobile with emergency power , maximum 2A
Charger
DC 12V / 2A
Battery
Built-in 7.4V lithium polymer battery , capacity 5000mAh, can provide power for 8-16 hours
Language
Chinese Simplified , Chinese Traditional, English
Internal SD storage
8G
Operating temperature
-10℃–+50℃
Working humidity
30%–90%
Size
23cm×14cm×4.5cm
Weight
0.9kg
IP Camera factory
Our Services:
OEM/ODM service
Yes
Warranty
2 years
Delivery time
Hot model sample in store; Stardand camera 5-7 working days
Payment
T/T;Paypal;WU
Shipping
Express,air cargo,sea cargo
