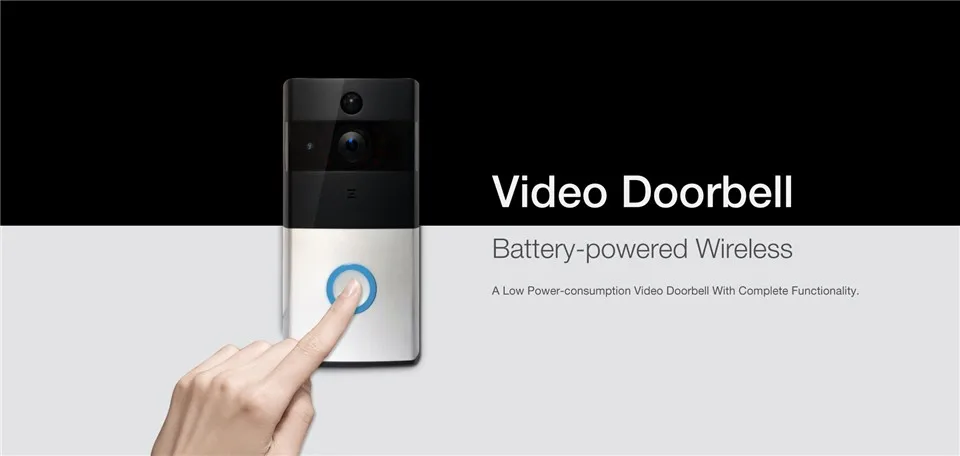

Tuya Wireless wifi battery powered Video Intercom Doorbell

FOB Reference Price:Get Latest Price
$1.00 - $10.00 / Pieces | 1 Piece/Pieces (Min. Order)
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
OEM
Model Number:
D01
Resolution:
720p video doorbell
App:
iphone/android app
Wireless:
Yes
IR Distance:
20m
Lens:
3.6mm Fixed Lens
Warranty:
2 years
Battery:
Yes
Type:
Tuya Video doorbell
Tuya smart:
Works with Amazon Alexa Google
Speaker:
intercom
Camera:
B/W
Power:
220V
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month Tuya Video doorbell in stock
Packaging & Delivery
Packaging Details
video doorbell package: 18pcs/CTN ; G.W:29kg/CNT
Port
Shenzhen ports
Video DoorBell

Tuya Wireless wifi battery powered Video Intercom Doorbell


Feature:
WiFi Video Doorbell

Tuya
Yes
Works with Amazon Alexa Google
Product Colour
black and silver
Plastic Material (External)
Housing
PC plastic
Camera Lens
PC plastic
Surface Finishing (Plastic & Metal part)
Housing
glazed
Camera Lens
Glossy polishing
Resistance to UV (UVA 340)
/
3 years
Product Lifetime
/
3 years from Production Date
Forecast Qty (next 3 years from launch date)
/
No maintenance
Gross Weight
/
346g
Product Size
/
190mm*105mm*70mm
Warranty Period
/
1 years from Production Date
3 years product life
Rated input voltage
/
AC 14-24V
Battery
/
Built-in Rechargeable(18650)
Power supply
/
4.3V
Power consumption
/
work:150ma standby:150uA
Operating temperature
/
-20 ~ 50 ℃, Humidity <95%
Operating humidty
/
80% max
Storage temperature
/
-20 ~ 70 ℃, Humidity <95%
Installation
/
Outdoor wall mounting 1.5m typical
Protection rating (IP)
/
IP55
Protection Class
/
Impact test 0.5Nm
Effective communication range
/
250m Min. line of sight
Solution / OS
/
RTOS
System Security
/
Three level user authority management
Mobile App Requirement
Android
Android : Android 4.3 or higher
Support
Support: SamSung, HTC, LG, Sony, Nokia
iOS
iOS 9.X - 10.X ( iPhone 5/6S/7 ) or higher
Mobile APP
/
Support Configuration/ Live browsing/ Recall/ Talking/ Audio volume adj/ Video adj./ Recording/ Format SD card
Cloud recording storage
/
NO
Support cloud uploading
Yes
Amazon Cloud
Yes
Ring tone
/
Fixed
Motion Sensor
/
PIR
Detection range
5m/ 110 degrees
Sensitivity
High/ Medium High/ Medium/ Low for selection
Suppory SD Card and TF Card
/
Yes
Format SD card
Yes
Support FAT
Yes
Tamper Detection
/
Yes
Pairing Max units
/
AP / Scan QR code to add device
On line visitor
/
Support up to 1 on line visitors
DDNS(Dynamic Domain Name Server)
/
NO
Image Sensor
/
720P CMOS sensor
Sensor support options
/
AWB AGC, IR filter and BLC
Sensor size
/
1/4
SNR
/
> = 39 dB
Minimum brightness
/
1 Lux ( Color mode ) No blur
0.3 Lux ( B&W mode ) No blur
Lens/Viewing angle
/
166°
Lens spec & material
/
1.4mm @ F2.4 , 6 layers
Night Vision
/
850 nm diameter
5M distance IR-cut preferrable
IR-control
IR turned ON:
night vision view enabled, infrared Ray, ICR auto detect.
IR turned OFF:
night vision view disabled, infrared Ray OFF, ICR stay in day view mode.
Compression standard
/
H.264/ motion JPEG ( when RF quality dropped )
Resolution & frame rate
/
Multi stream:720P/24fps
Bit Rate
/
CBR/VBR, output bit rate range:128~4096kbps TBD
Image adjustment
/
Brightness, Contrast, Saturation are adjustable.
MIC input
/
1 Channel Internal -48dB microphone
Speaker output
/
Internal speaker (8Ω/1W)
Sampling frequency/
/
8-16KHz/16bit
Data compression technology
/
ADPCM/32kbps
Echo cancellation
/
Yes
Two-Way Talk
/
Yes
Effective Volume
/
Indication tone 75dB @ 0.5m
Mircrophone
Directive
Omni-directional
Effective Detection Range
0.5m max.
Protocol
/
TCP/IP, HTTP, DHCP
WiFi
/
802.11b/g/n
Network security
/
WEP, WPA, WPA2 encryption
Wireless Connection
/
AP hotspot / STA (Station Mode - Client)
RF receiving sensitivity
/
802.11n: HT20/MCS 7 10% PER @ -70 dBm, typical
802.11g: 54Mbps 10%PER @ -72dBm, typical
802.11b: 11Mbps 10%PER @ -86 dBm, typical
Output Power
/
802.11n: HT20/MCS0 18 dBm typical
802.11n: HT20/MCS7 16 dBm typical
802.11g: 54Mbps 16 dBm typical
802.11g: 6Mbps 18 dBm typical
802.11b: 11Mbps 18dBm typical
Wired Connection
/
No
Pairing
/
AP
Tuya Video Doordell

Works with Amazon Alexa Google; Storage by Amazon cloud option.

Wileress Doorbell

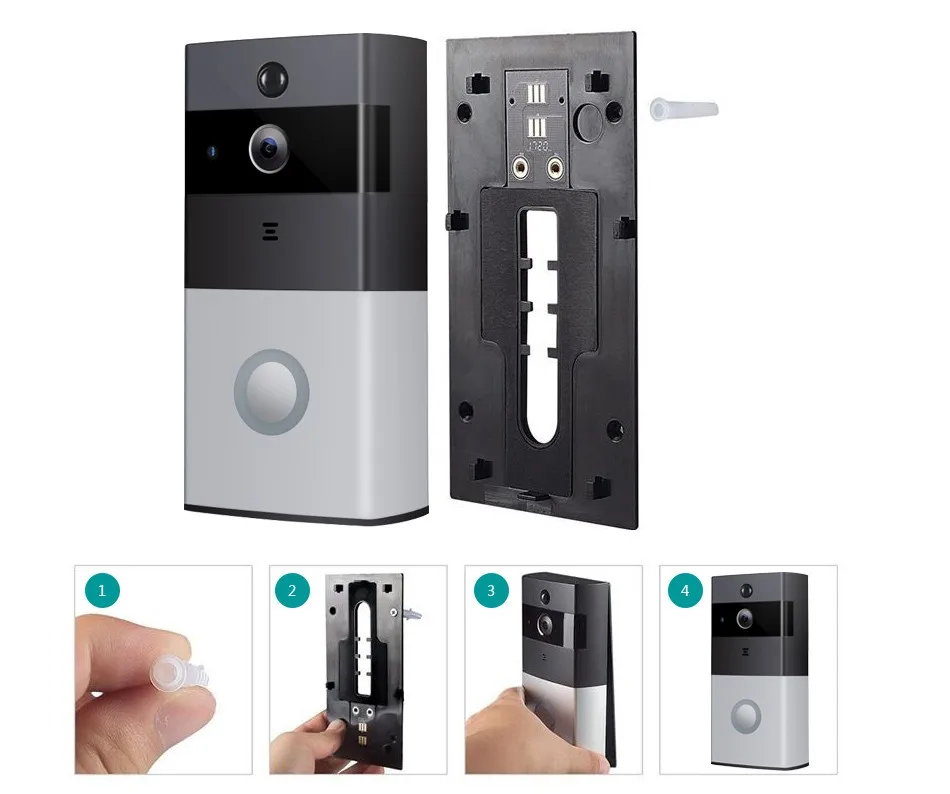

How to install the Wireless video doorbell Tuya smart home intercom system

Our Services:
OEM/ODM service
Yes
Warranty
2 years
Delivery time
Hot model sample in store; Stardand camera 5-7 working days
Payment
T/T;Paypal;WU
Shipping
Express,air cargo,sea cargo
